ShakeMap
Time:
Mon August 23, 2021 22:27:26 (UTC)
|
Depth:
2.58 km
|
Event ID:
61761777
|
Location:
48.602, -121.957
Downloads
| Regional | |
|---|---|

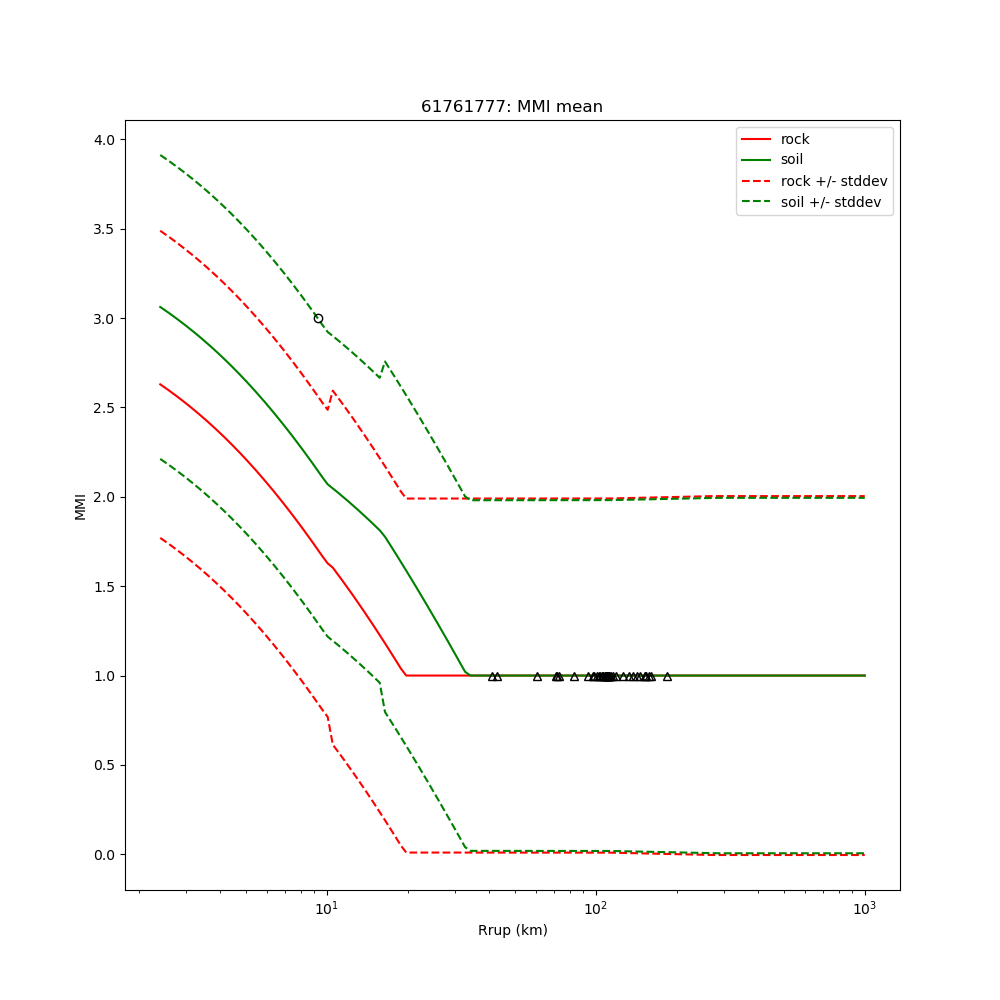

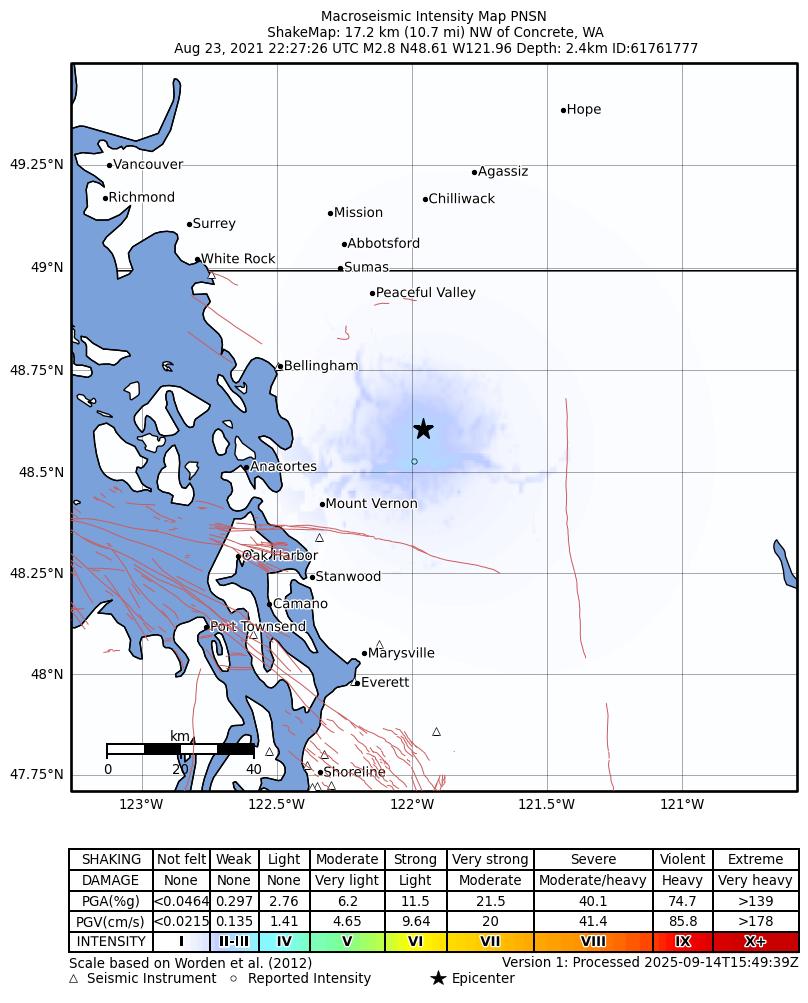

| intensity | JPG | PS.ZIP |

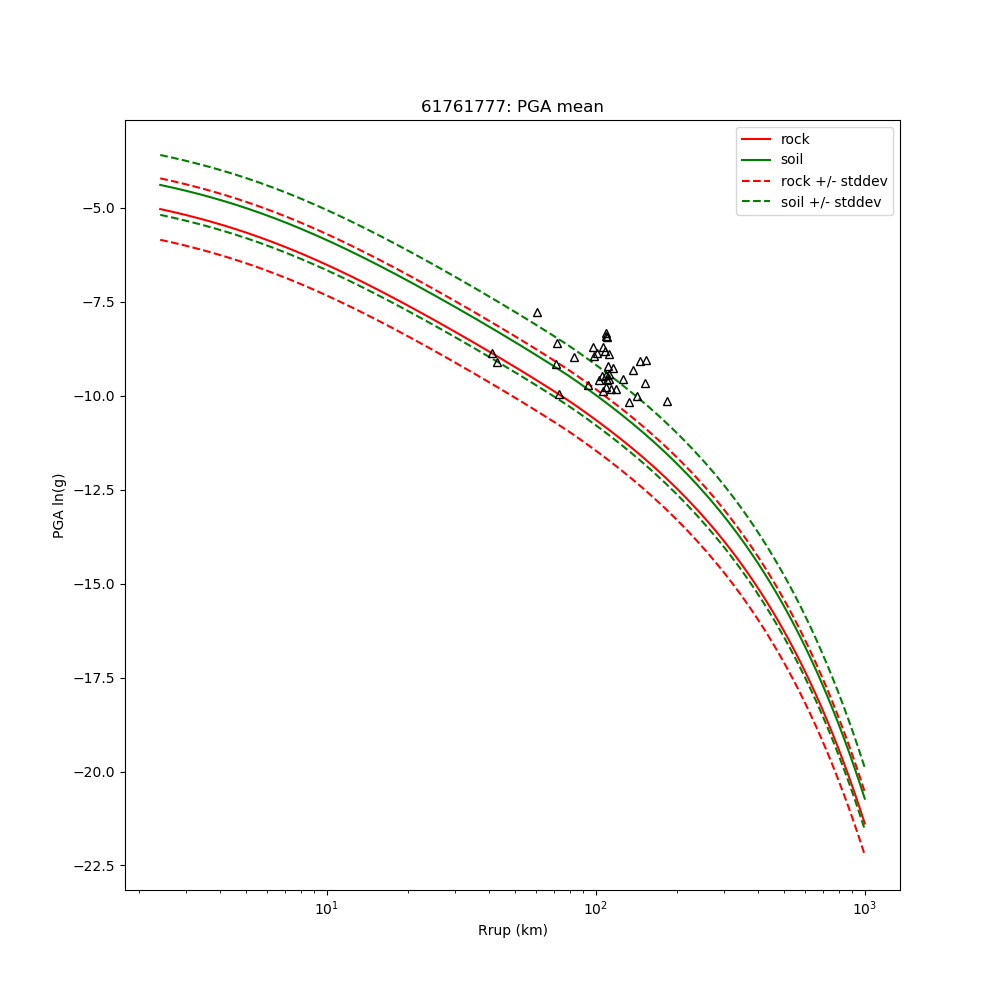

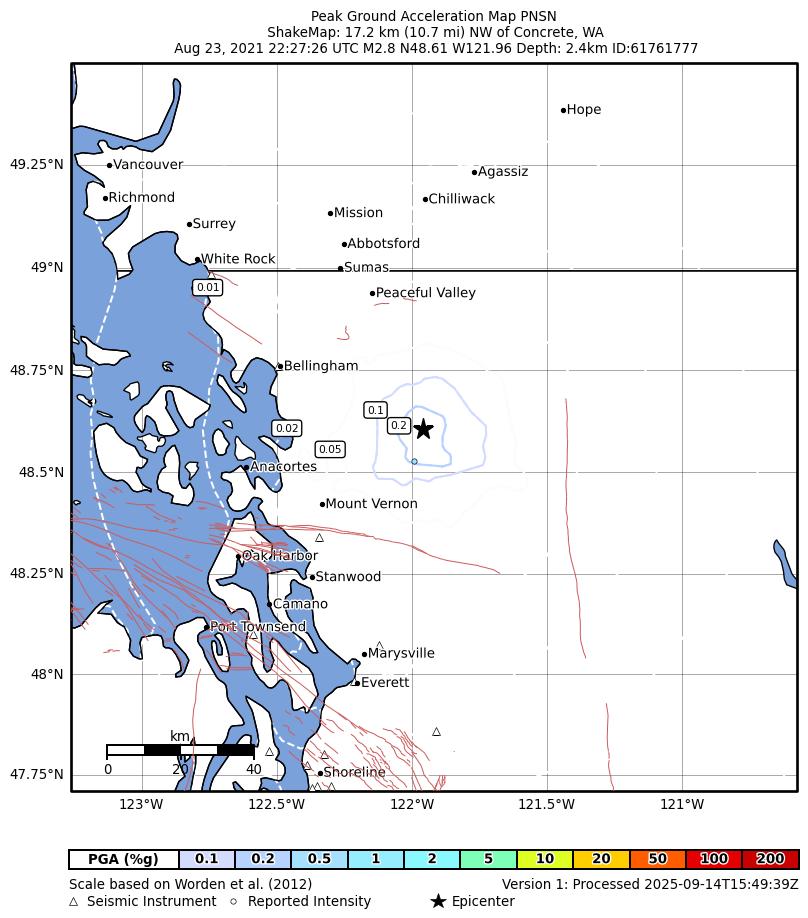

| acceleration | JPG | PS.ZIP |

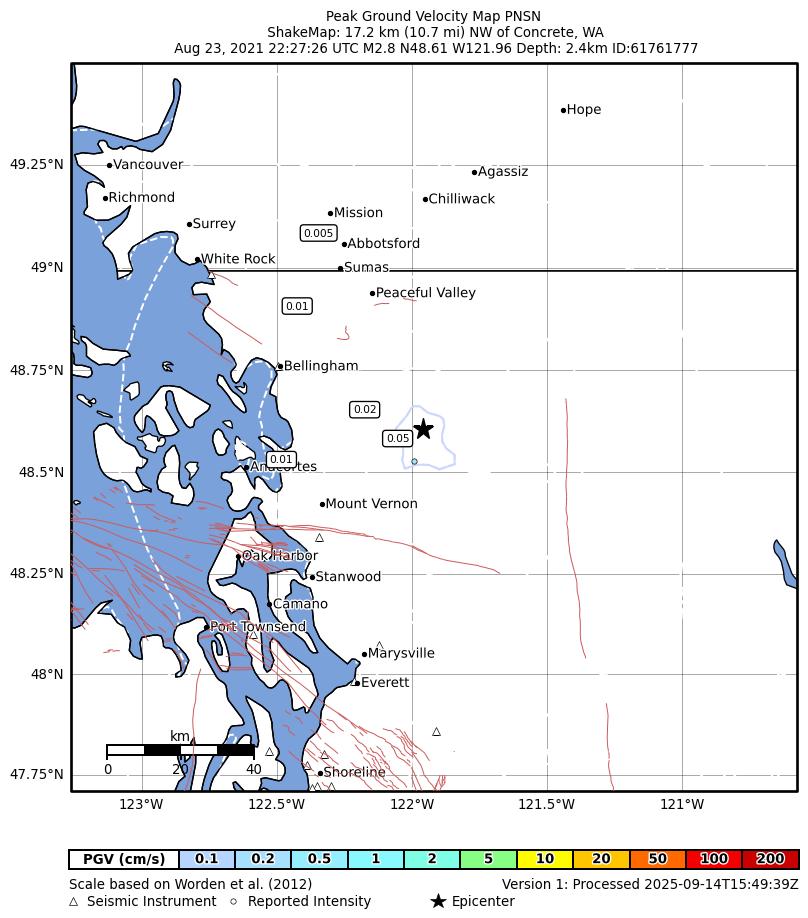

| velocity | JPG | PS.ZIP |

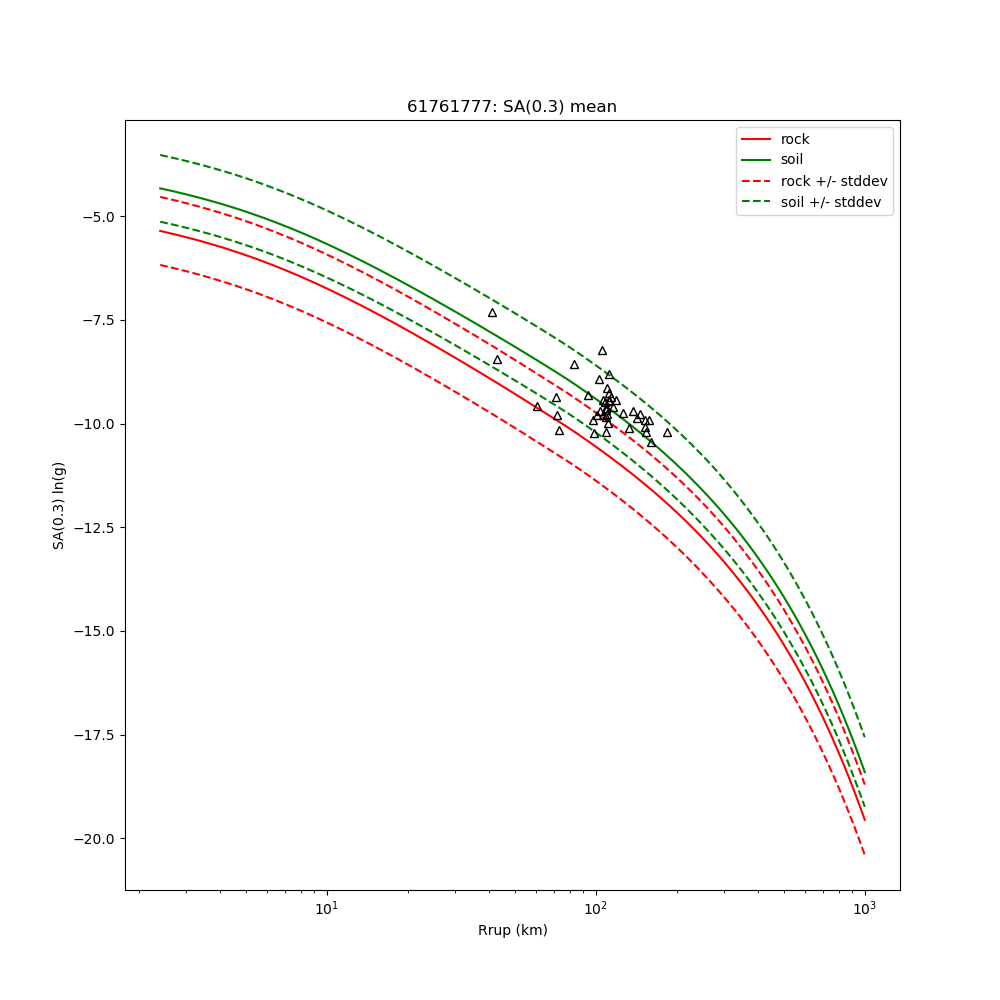

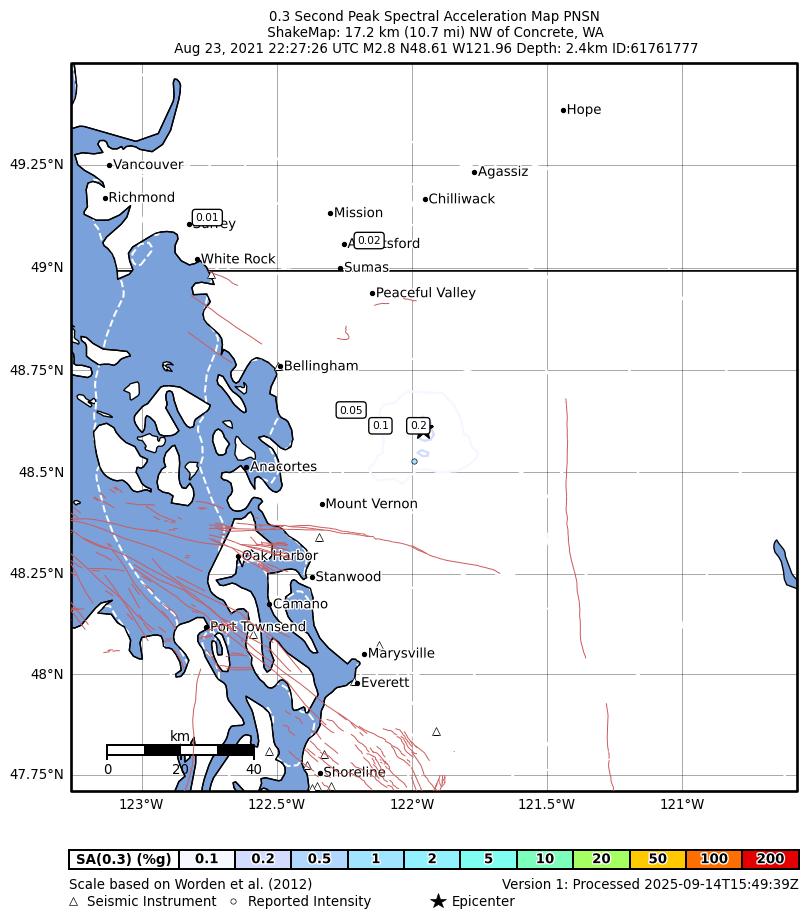

| spectral 0.3 | JPG | PS.ZIP |

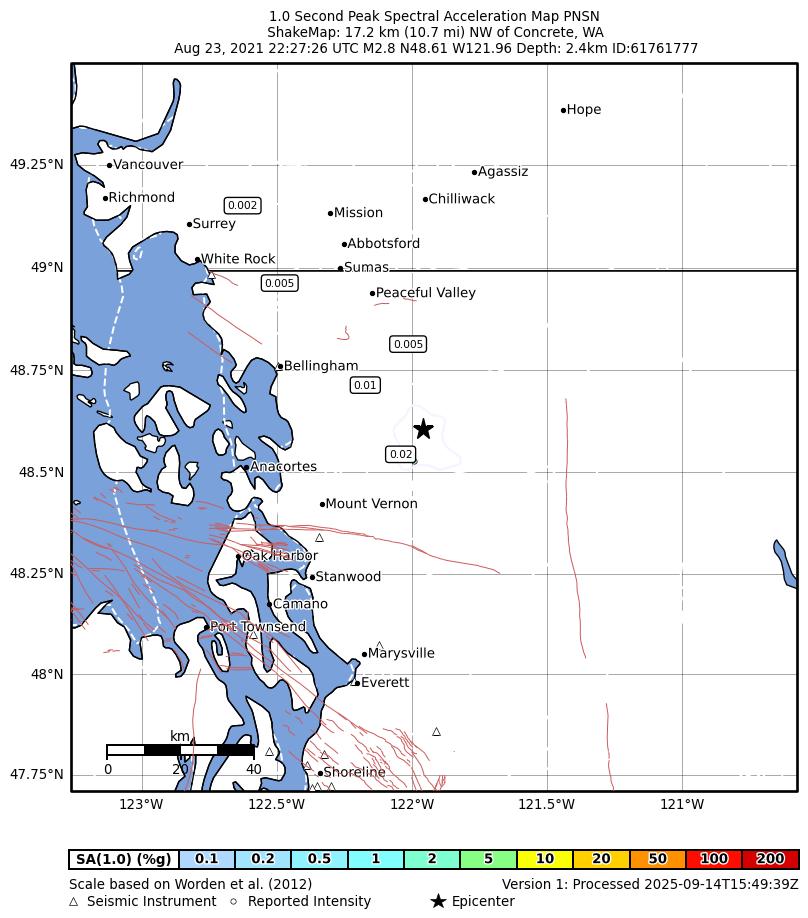

| spectral 1.0 | JPG | PS.ZIP |

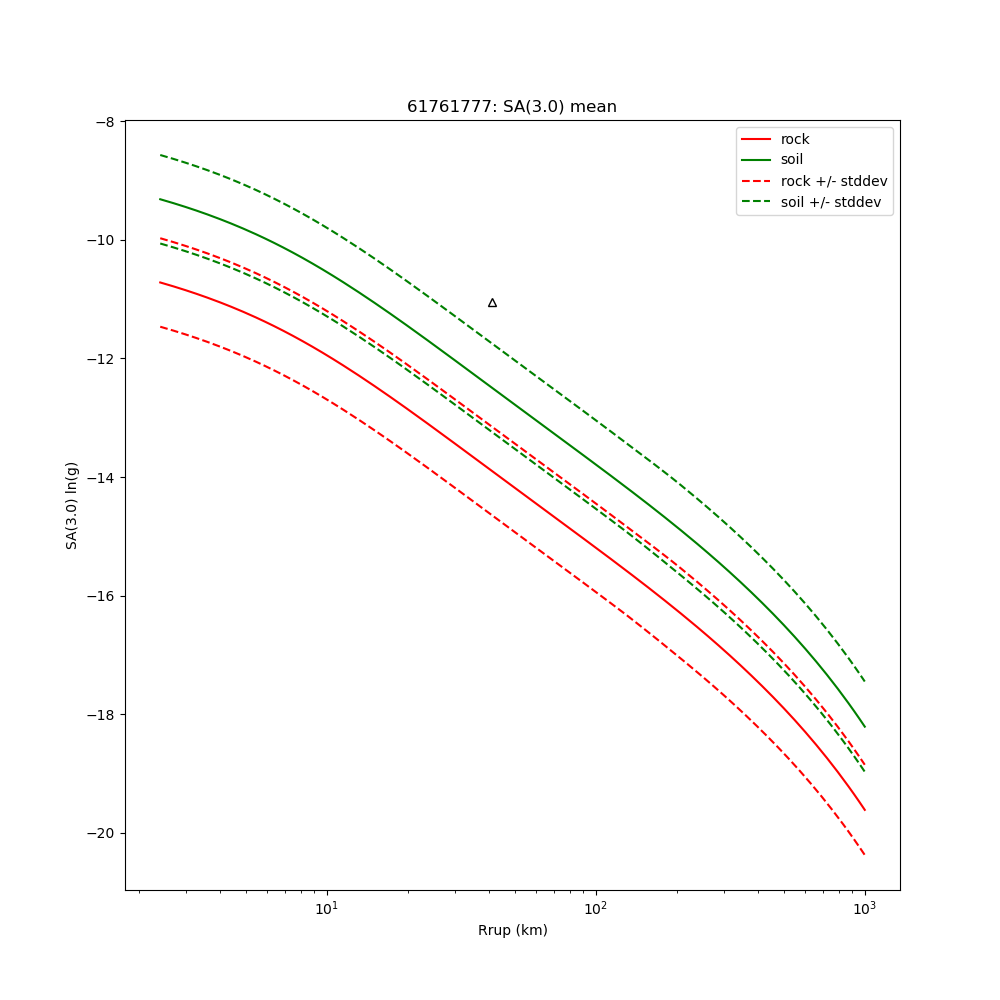

| spectral 3.0 | JPG | PS.ZIP |

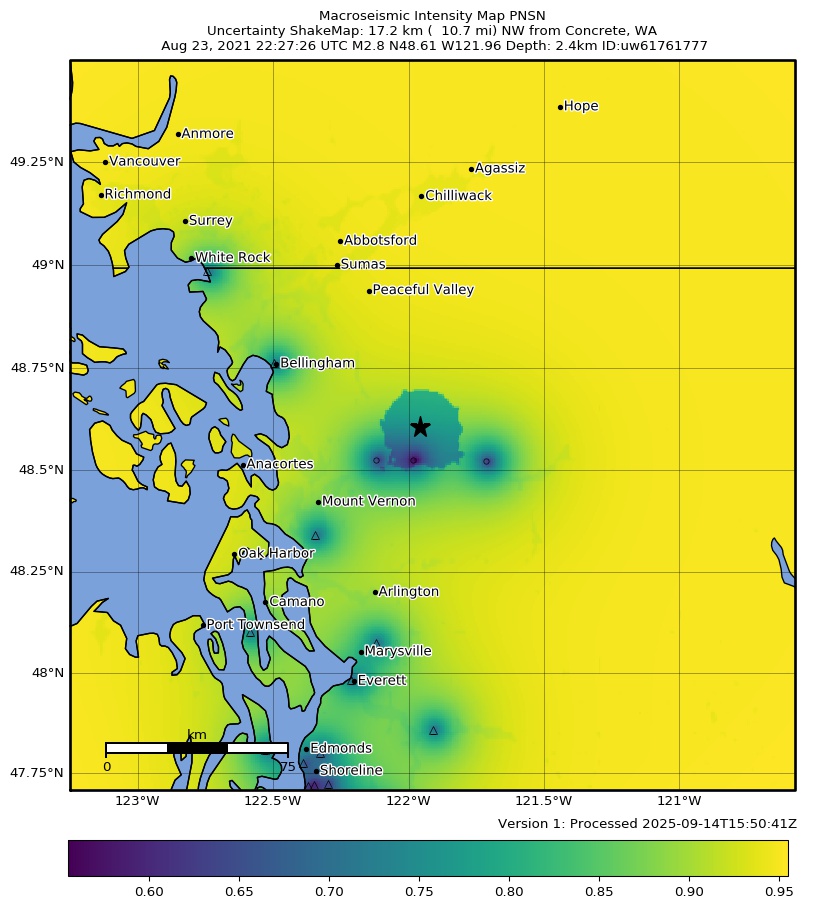

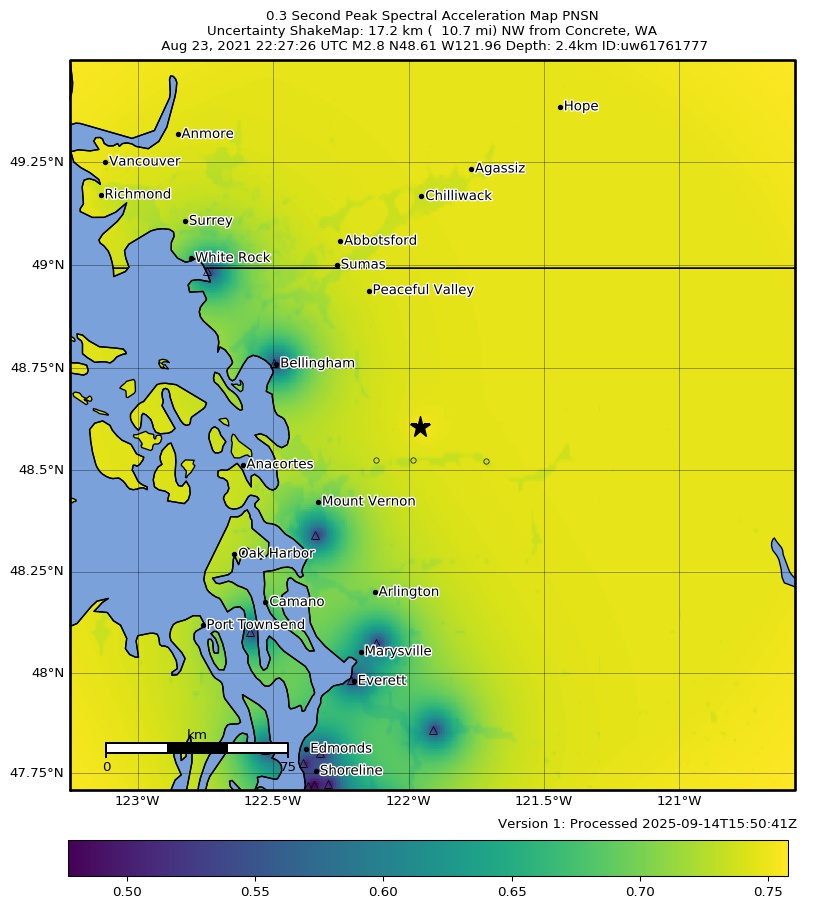

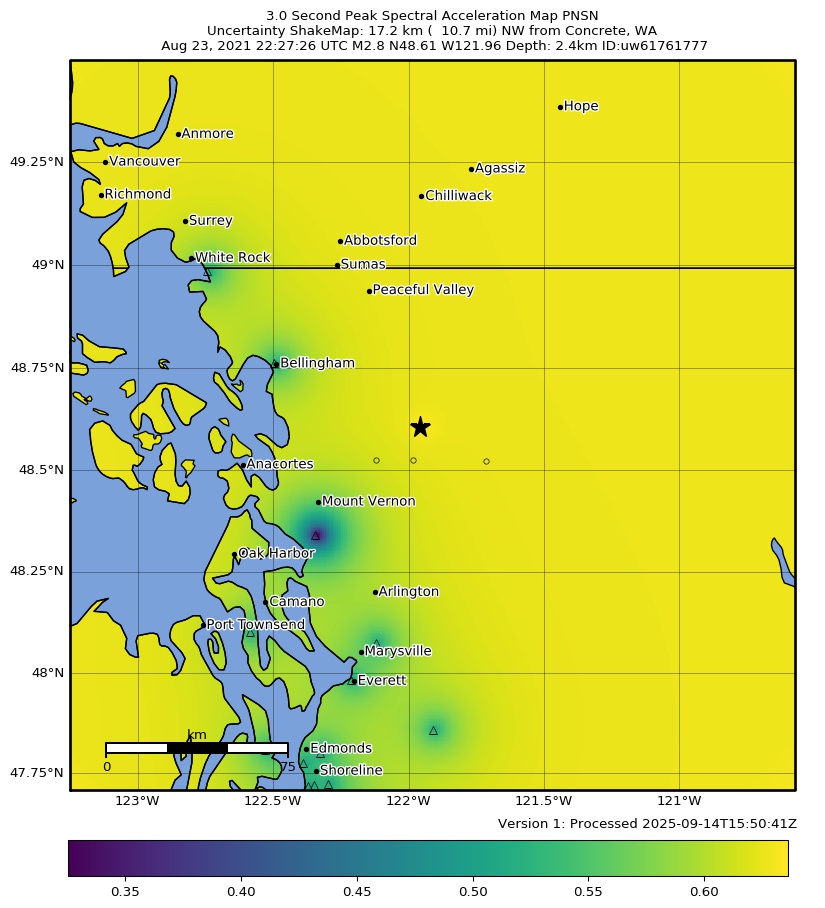

| uncertainty | JPG | PS.ZIP |
| tv map | JPG | PS.ZIP |
| tv map bare | JPG | PS.ZIP |
| tv info sheet | TXT |
| grid | XYZ.ZIP | XML.ZIP |
| gis | ZIP |
| station | TXT | XML |
| metadata | TXT |
Earthquake
| Event ID | Magnitude | Date | Time | Lat | Lon | Depth |
| 61761777 | 2.8 | // | :: | N48.60030 | W121.95300 | 2.44 km |

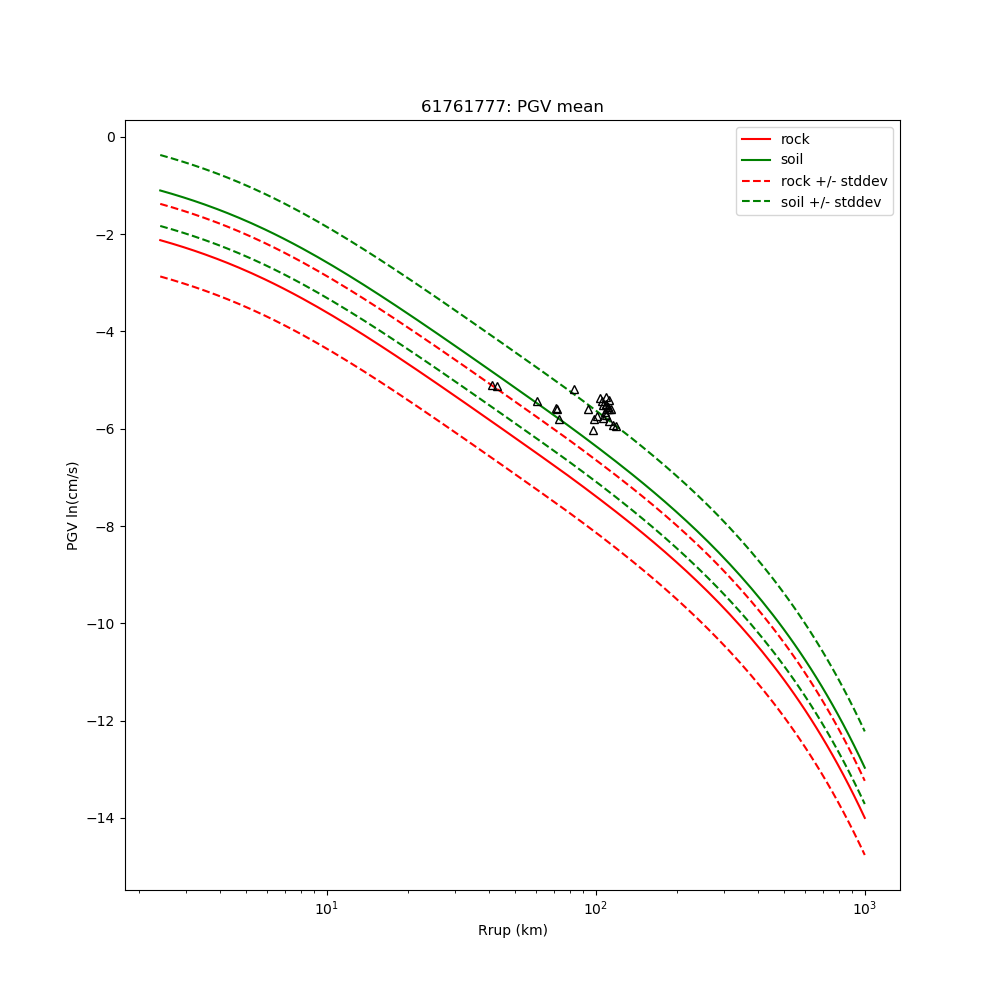

| Magnitude Bias: | MMI | PGA | PGV | |||
| -1.41 | 0.48 | 0.59 |
Seismic Stations
| UW.QBRO: | Marysville, WA, USA | Agency: Pacific Northwest Regional Seismic Network | |||
| Lat: 48.07397 Lon: -122.12118 Distance: 59.88 km from source | |||||
| Intensity: 1.0 | |||||

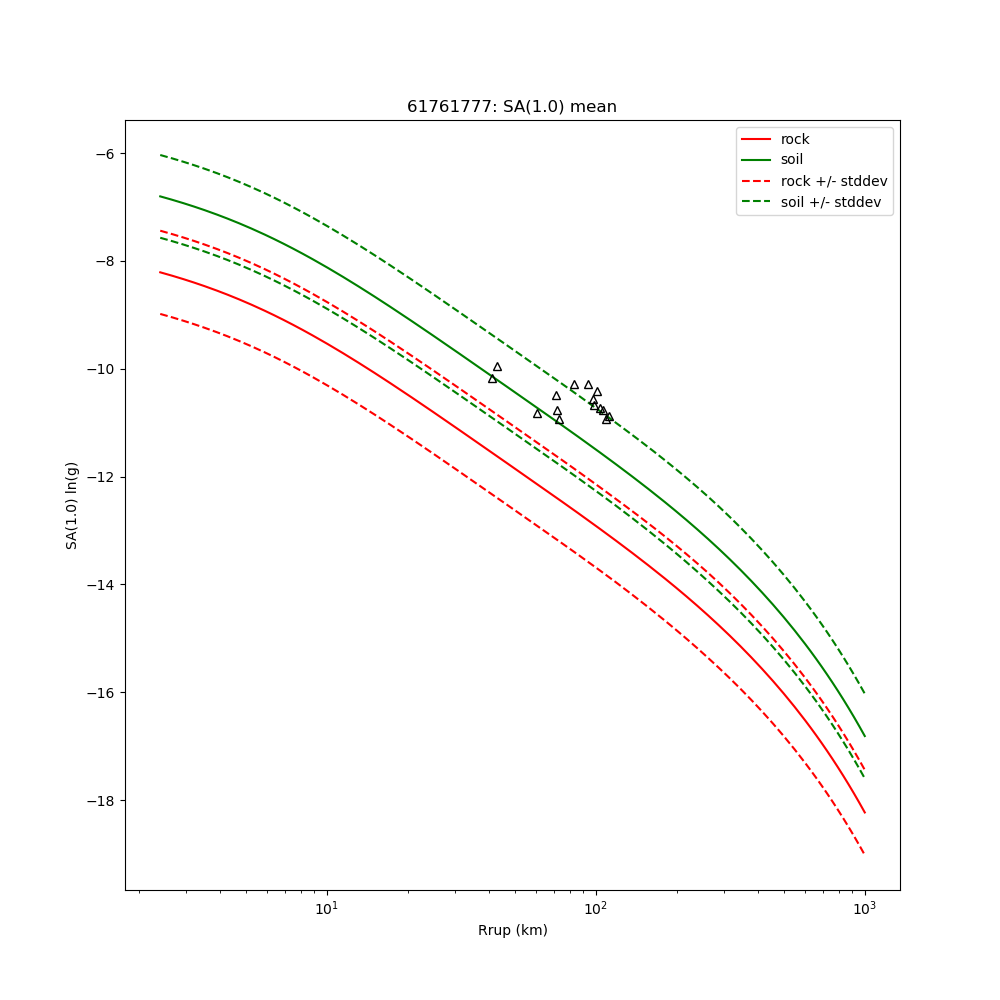

| Station Comp | Max Vel (cm/s) | Max Acc (%g) | PSA: 0.3 sec (%g) | 1.0 sec (%g) | 3.0 sec (%g) |
| 01.HNN | 0.0044 | 0.0421 | -- | -- | -- |
| 01.HNE | 0.0031 | 0.0387 | -- | -- | -- |
| 01.HNZ | 0.0049 | 0.1551 | -- | -- | -- |
| UW.QCDG: | Casa Del Gato; Greebeck, Wa, USA | Agency: Pacific Northwest Regional Seismic Network | |||
| Lat: 48.10002 Lon: -122.58696 Distance: 72.77 km from source | |||||
| Intensity: 1.0 | |||||
| Station Comp | Max Vel (cm/s) | Max Acc (%g) | PSA: 0.3 sec (%g) | 1.0 sec (%g) | 3.0 sec (%g) |
| 01.HNN | 0.0027 | 0.0047 | -- | -- | -- |
| 01.HNE | 0.0030 | 0.0037 | -- | -- | -- |
| 01.HNZ | 0.0022 | 0.0051 | -- | -- | -- |
| UW.QCON: | Conway, WA, USA | Agency: Pacific Northwest Regional Seismic Network | |||
| Lat: 48.34024 Lon: -122.34459 Distance: 40.93 km from source | |||||
| Intensity: 1.0 | |||||
| Station Comp | Max Vel (cm/s) | Max Acc (%g) | PSA: 0.3 sec (%g) | 1.0 sec (%g) | 3.0 sec (%g) |
| 01.HNN | 0.0061 | 0.0142 | -- | -- | -- |
| 01.HNE | 0.0060 | 0.0141 | -- | -- | -- |
| 01.HNZ | 0.0190 | 0.0572 | -- | -- | -- |
| UW.QEGA: | Everett, WA, USA | Agency: Pacific Northwest Regional Seismic Network | |||
| Lat: 47.98284 Lon: -122.21261 Distance: 71.34 km from source | |||||
| Intensity: 1.0 | |||||
| Station Comp | Max Vel (cm/s) | Max Acc (%g) | PSA: 0.3 sec (%g) | 1.0 sec (%g) | 3.0 sec (%g) |
| 01.HNN | 0.0037 | 0.0184 | -- | -- | -- |
| 01.HNE | 0.0025 | 0.0112 | -- | -- | -- |
| 01.HNZ | 0.0029 | 0.0186 | -- | -- | -- |
| UW.QHSH: | Bellingham, WA, USA | Agency: Pacific Northwest Regional Seismic Network | |||
| Lat: 48.76047 Lon: -122.49662 Distance: 43.77 km from source | |||||
| Intensity: 1.0 | |||||
| Station Comp | Max Vel (cm/s) | Max Acc (%g) | PSA: 0.3 sec (%g) | 1.0 sec (%g) | 3.0 sec (%g) |
| 01.HNN | 0.0060 | 0.0090 | -- | -- | -- |
| 01.HNE | 0.0040 | 0.0111 | -- | -- | -- |
| 01.HNZ | 0.0026 | 0.0175 | -- | -- | -- |
| UW.QJLF: | Blaine, WA, USA | Agency: Pacific Northwest Regional Seismic Network | |||
| Lat: 48.98512 Lon: -122.74295 Distance: 72.01 km from source | |||||
| Intensity: 1.0 | |||||
| Station Comp | Max Vel (cm/s) | Max Acc (%g) | PSA: 0.3 sec (%g) | 1.0 sec (%g) | 3.0 sec (%g) |
| 01.HNN | 0.0034 | 0.0107 | -- | -- | -- |
| 01.HNE | 0.0038 | 0.0092 | -- | -- | -- |
| 01.HNZ | 0.0069 | 0.0553 | -- | -- | -- |
| UW.QKTN: | Kingston, WA, USA | Agency: Pacific Northwest Regional Seismic Network | |||
| Lat: 47.80860 Lon: -122.52930 Distance: 97.88 km from source | |||||
| Intensity: 1.0 | |||||
| Station Comp | Max Vel (cm/s) | Max Acc (%g) | PSA: 0.3 sec (%g) | 1.0 sec (%g) | 3.0 sec (%g) |
| 01.HNN | 0.0027 | 0.0131 | -- | -- | -- |
| 01.HNE | 0.0030 | 0.0091 | -- | -- | -- |
| 01.HNZ | 0.0020 | 0.0126 | -- | -- | -- |
| UW.QPBC: | Mountlake Terrace, WA, USA | Agency: Pacific Northwest Regional Seismic Network | |||
| Lat: 47.80180 Lon: -122.32652 Distance: 93.04 km from source | |||||
| Intensity: 1.0 | |||||
| Station Comp | Max Vel (cm/s) | Max Acc (%g) | PSA: 0.3 sec (%g) | 1.0 sec (%g) | 3.0 sec (%g) |
| 01.HNN | 0.0037 | 0.0059 | -- | -- | -- |
| 01.HNE | 0.0033 | 0.0061 | -- | -- | -- |
| 01.HNZ | 0.0029 | 0.0199 | -- | -- | -- |
| UW.QPLV: | Monroe, WA, USA | Agency: Pacific Northwest Regional Seismic Network | |||
| Lat: 47.85852 Lon: -121.90920 Distance: 82.58 km from source | |||||
| Intensity: 1.0 | |||||
| Station Comp | Max Vel (cm/s) | Max Acc (%g) | PSA: 0.3 sec (%g) | 1.0 sec (%g) | 3.0 sec (%g) |
| 01.HNN | 0.0056 | 0.0126 | -- | -- | -- |
| 01.HNE | 0.0030 | 0.0093 | -- | -- | -- |
| 01.HNZ | 0.0046 | 0.0265 | -- | -- | -- |
| UW.QRMB: | Shoreline, WA, USA | Agency: Pacific Northwest Regional Seismic Network | |||
| Lat: 47.77483 Lon: -122.38951 Distance: 97.36 km from source | |||||
| Intensity: 1.0 | |||||
| Station Comp | Max Vel (cm/s) | Max Acc (%g) | PSA: 0.3 sec (%g) | 1.0 sec (%g) | 3.0 sec (%g) |
| 01.HNN | 0.0024 | 0.0050 | -- | -- | -- |
| 01.HNE | 0.0024 | 0.0166 | -- | -- | -- |
| 01.HNZ | 0.0030 | 0.0494 | -- | -- | -- |
