ShakeMap
Time:
Wed February 28, 2001 07:16:13 (UTC)
|
Depth:
-0.58 km
|
Event ID:
10530553
|
Location:
47.751, -120.03
Downloads
| Regional | High Resolution Hanford | |
|---|---|---|

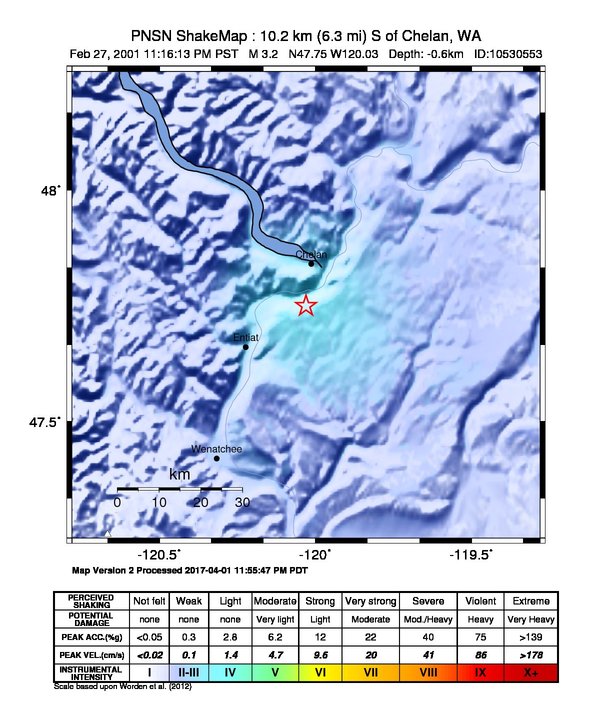

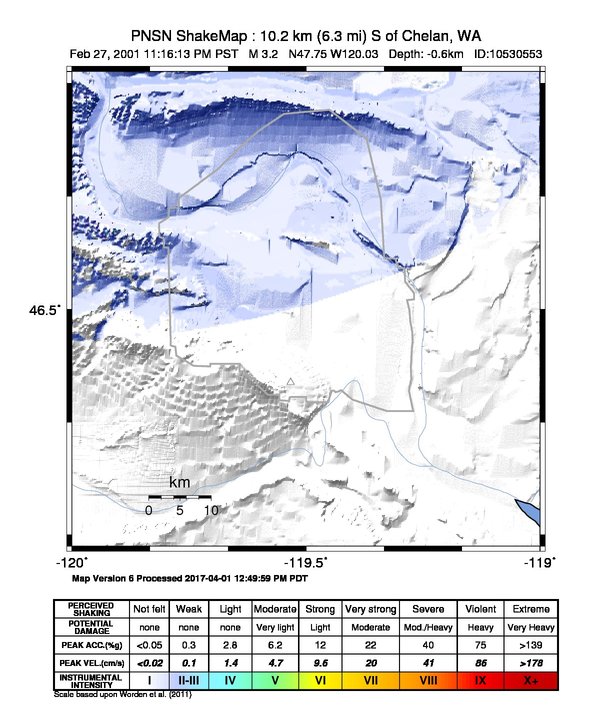

| intensity | JPG | PS.ZIP | JPG | PS.ZIP |

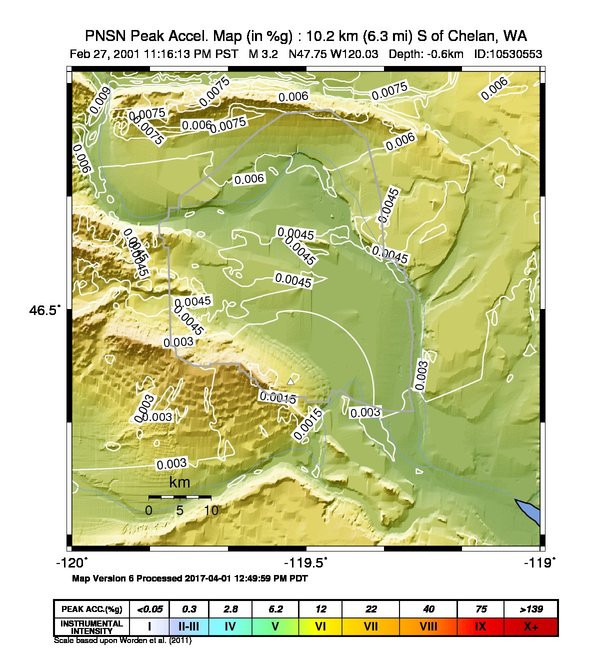

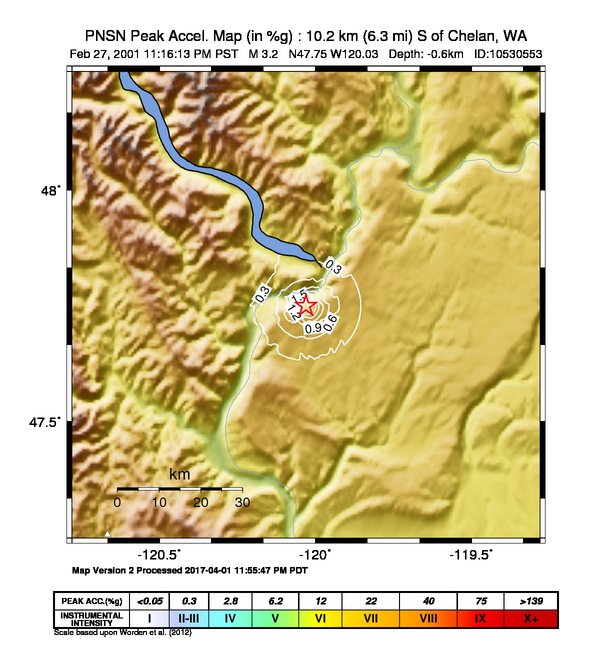

| acceleration | JPG | PS.ZIP | JPG | PS.ZIP |

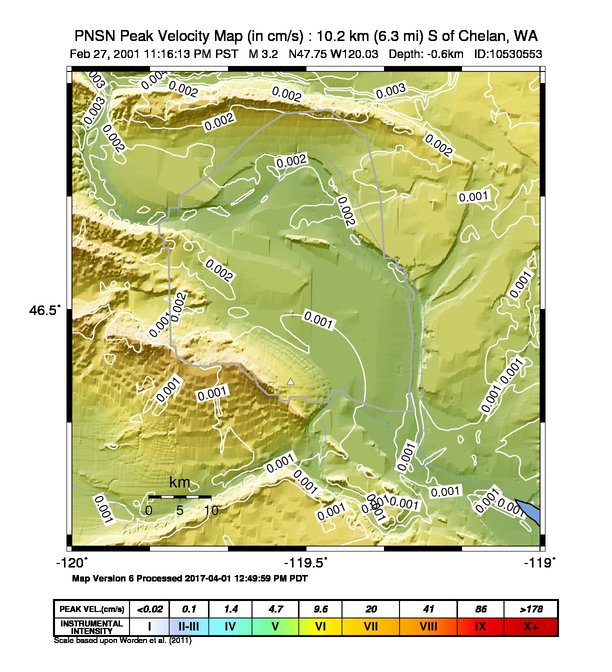

| velocity | JPG | PS.ZIP | JPG | PS.ZIP |

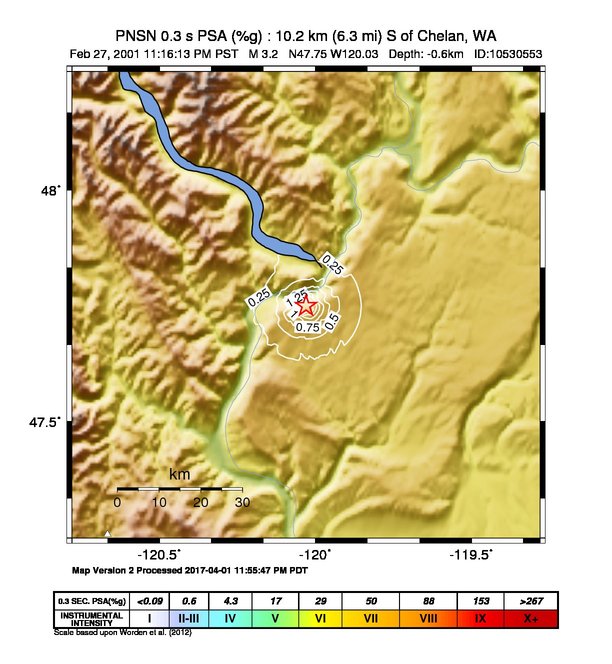

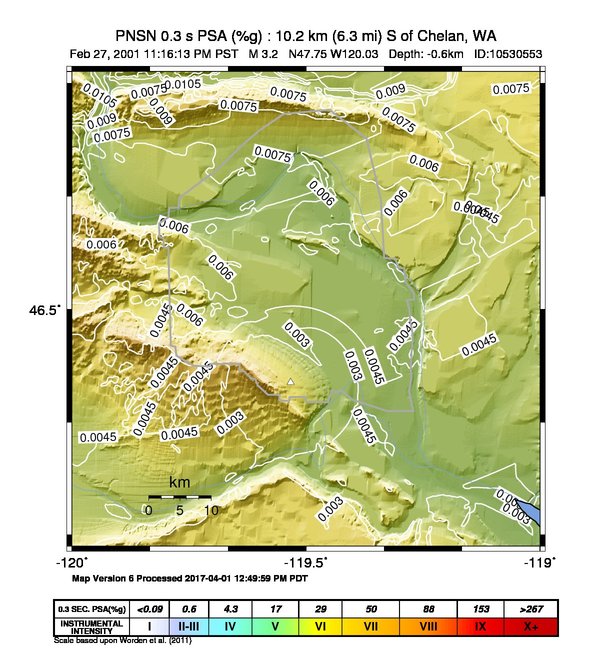

| spectral 0.3 | JPG | PS.ZIP | JPG | PS.ZIP |

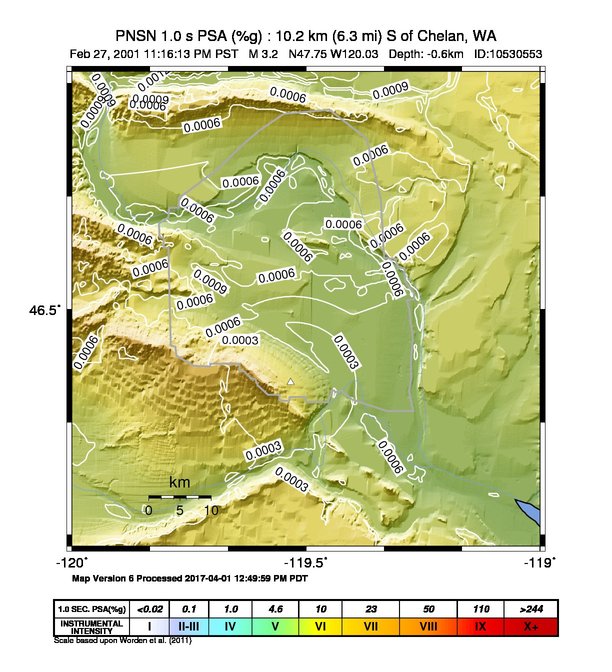

| spectral 1.0 | JPG | PS.ZIP | JPG | PS.ZIP |
| spectral 3.0 | JPG | PS.ZIP | JPG | PS.ZIP |

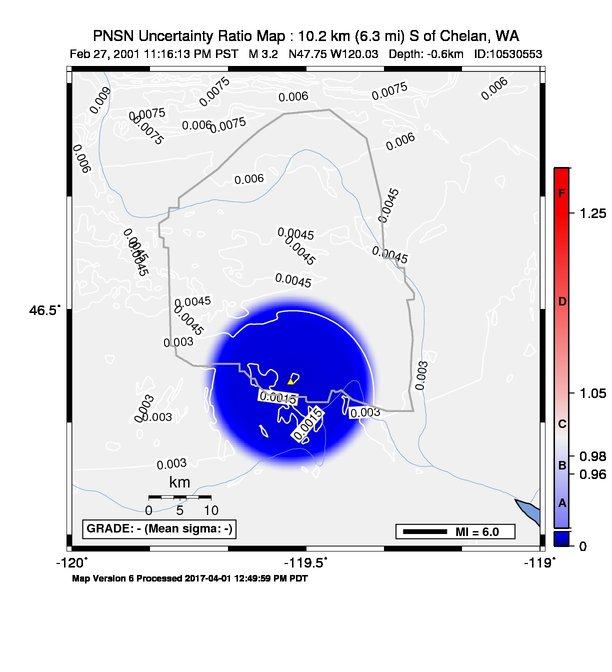

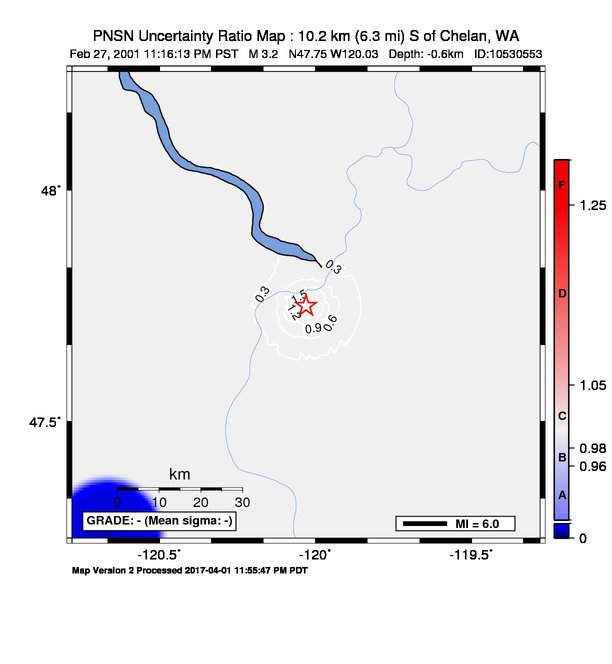

| uncertainty | JPG | PS.ZIP | JPG | PS.ZIP |

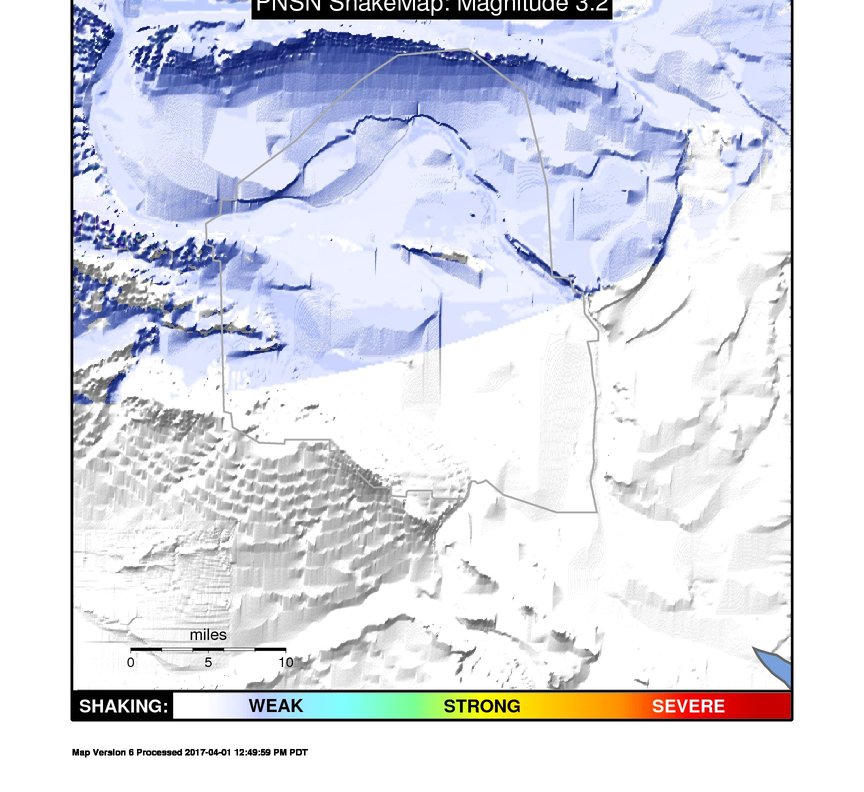

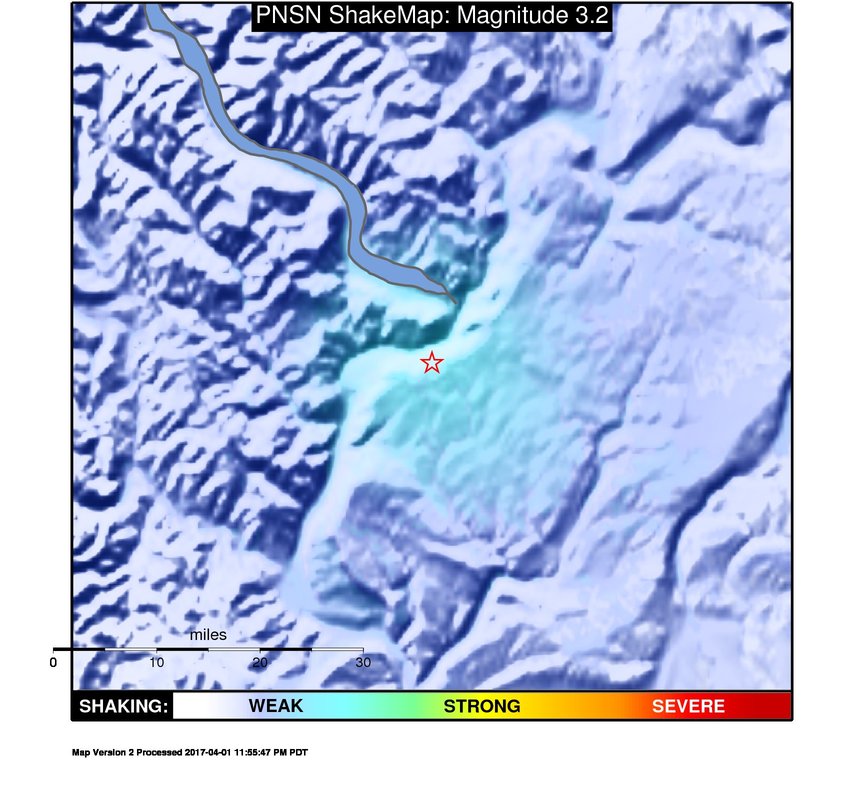

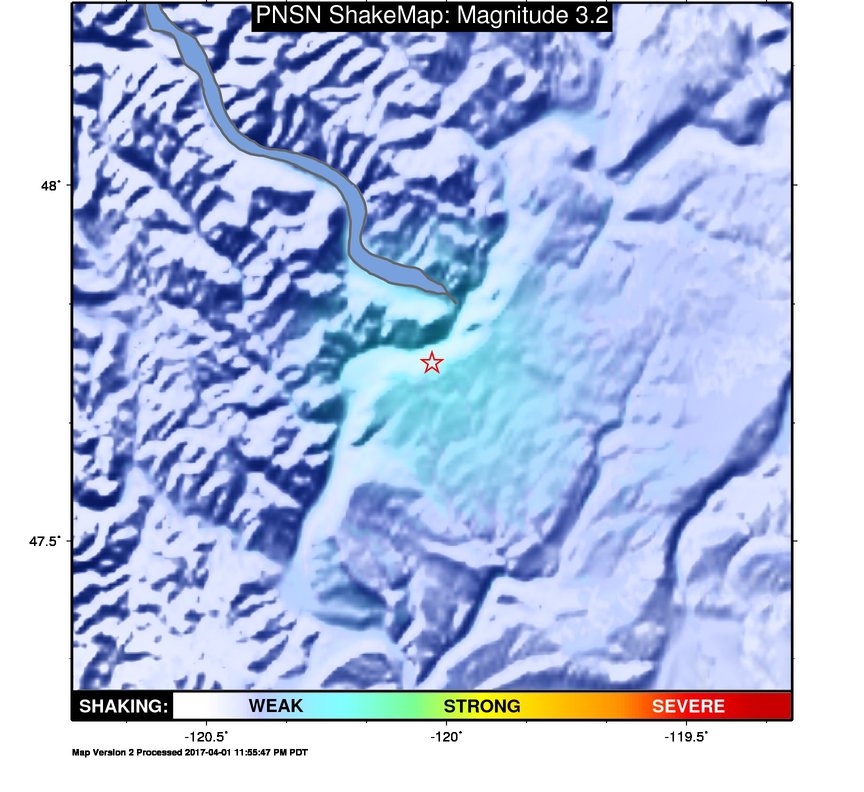

| tv map | JPG | PS.ZIP | JPG | PS.ZIP |

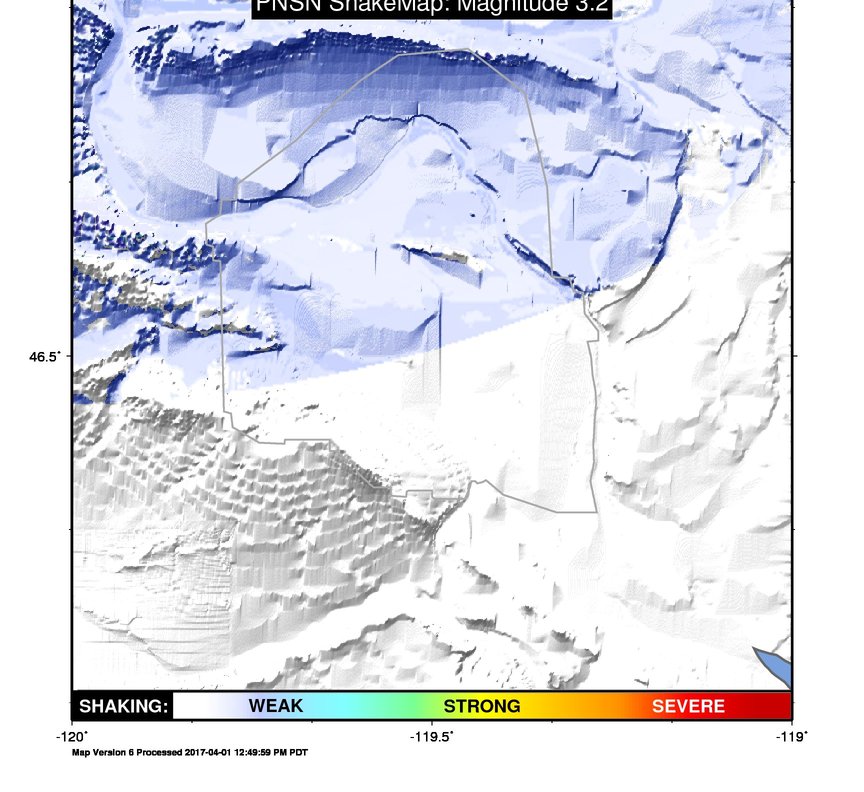

| tv map bare | JPG | PS.ZIP | JPG | PS.ZIP |
| tv info sheet | TXT | TXT |
| grid | XYZ.ZIP | XML.ZIP | XYZ.ZIP | XML.ZIP |
| gis | ZIP | ZIP |
| station | TXT | XML | TXT | XML |
| metadata | TXT | TXT |
Earthquake
| Event ID | Magnitude | Date | Time | Lat | Lon | Depth |
| 10530553 | 3.2 | // | :: | N47.75070 | W120.03030 | -0.58 km |
| Magnitude Bias: | MMI | PGA | PGV | PSA 0.3 | PSA 1.0 | PSA 3.0 |
| 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 |
Seismic Stations
| UW.LTY: | Liberty BB CREST SMO | Agency: Pacific Northwest Regional Seismic Network | |||
| Lat: 47.25451 Lon: -120.66636 Distance: 72.99 km from source | |||||
| Intensity: 1.0 | |||||
| Station Comp | Max Vel (cm/s) | Max Acc (%g) | PSA: 0.3 sec (%g) | 1.0 sec (%g) | 3.0 sec (%g) |
| --.BHE | 0.0003 | 0.0017 | 0.0014 | 0.0001 | 0.0000 -T |
| --.BHN | 0.0005 | 0.0026 | 0.0015 | 0.0001 | 0.0000 -T |
| --.BHZ | 0.0002 | 0.0013 | 0.0008 | 0.0001 | 0.0000 -T |
Earthquake
| Event ID | Magnitude | Date | Time | Lat | Lon | Depth |
| 10530553 | 3.2 | // | :: | N47.75070 | W120.03030 | -0.58 km |
| Magnitude Bias: | MMI | PGA | PGV | PSA 0.3 | PSA 1.0 | PSA 3.0 |
| 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 |
Seismic Stations
| US.HAWA: | Hanford, Washington, USA | Agency: ANSS-NEIC | |||
| Lat: 46.39250 Lon: -119.53270 Distance: 155.65 km from epicenter | |||||
| Intensity: 1.0 | |||||
| Station Comp | Max Vel (cm/s) | Max Acc (%g) | PSA: 0.3 sec (%g) | 1.0 sec (%g) | 3.0 sec (%g) |
| --.BHE | 0.0000 | 0.0000 | 0.0000 | 0.0000 | 0.0000 |
| --.BHN | 0.0003 | 0.0010 | 0.0012 | 0.0001 | 0.0000 |
| --.BHZ | 0.0005 | 0.0014 | 0.0010 | 0.0001 | 0.0000 |
